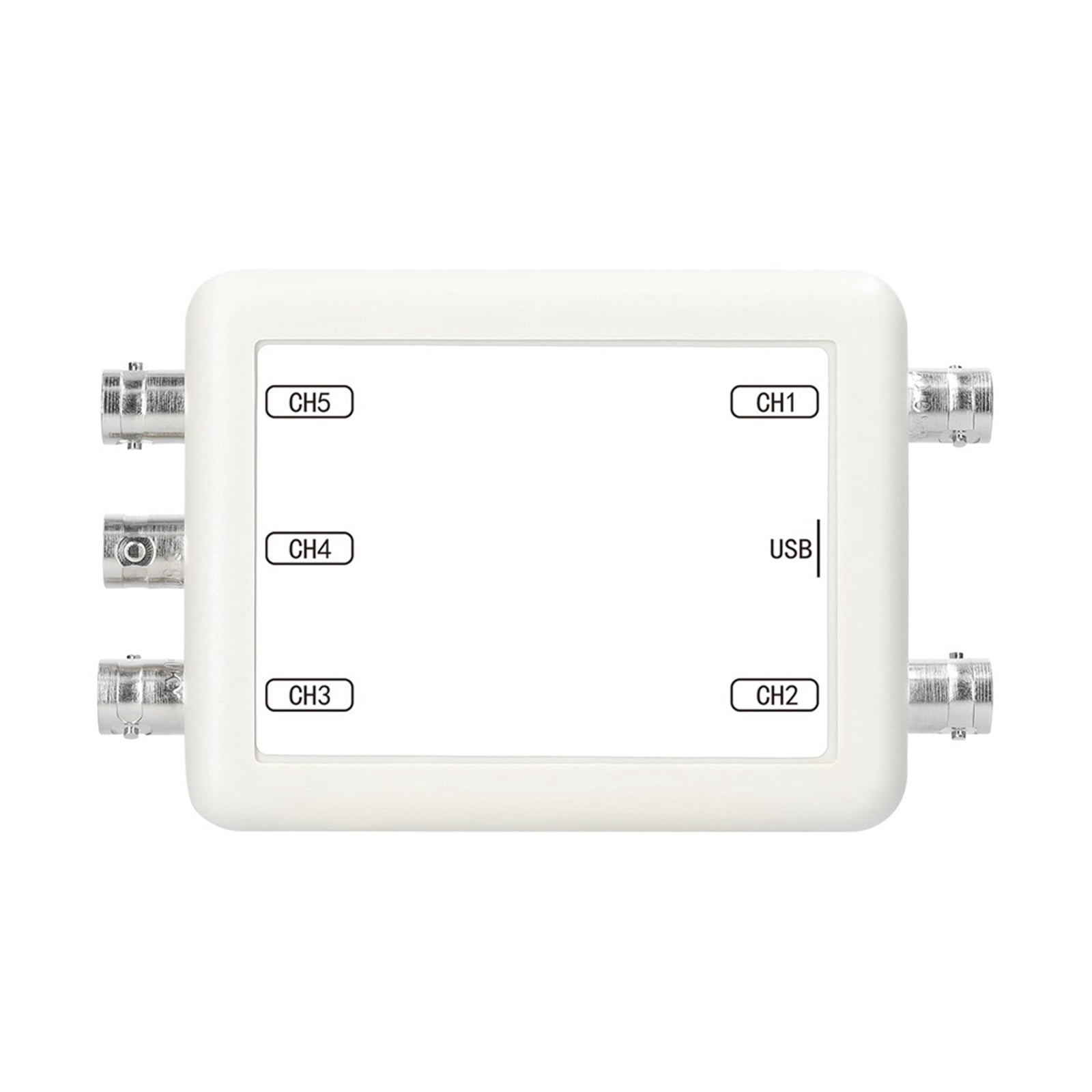

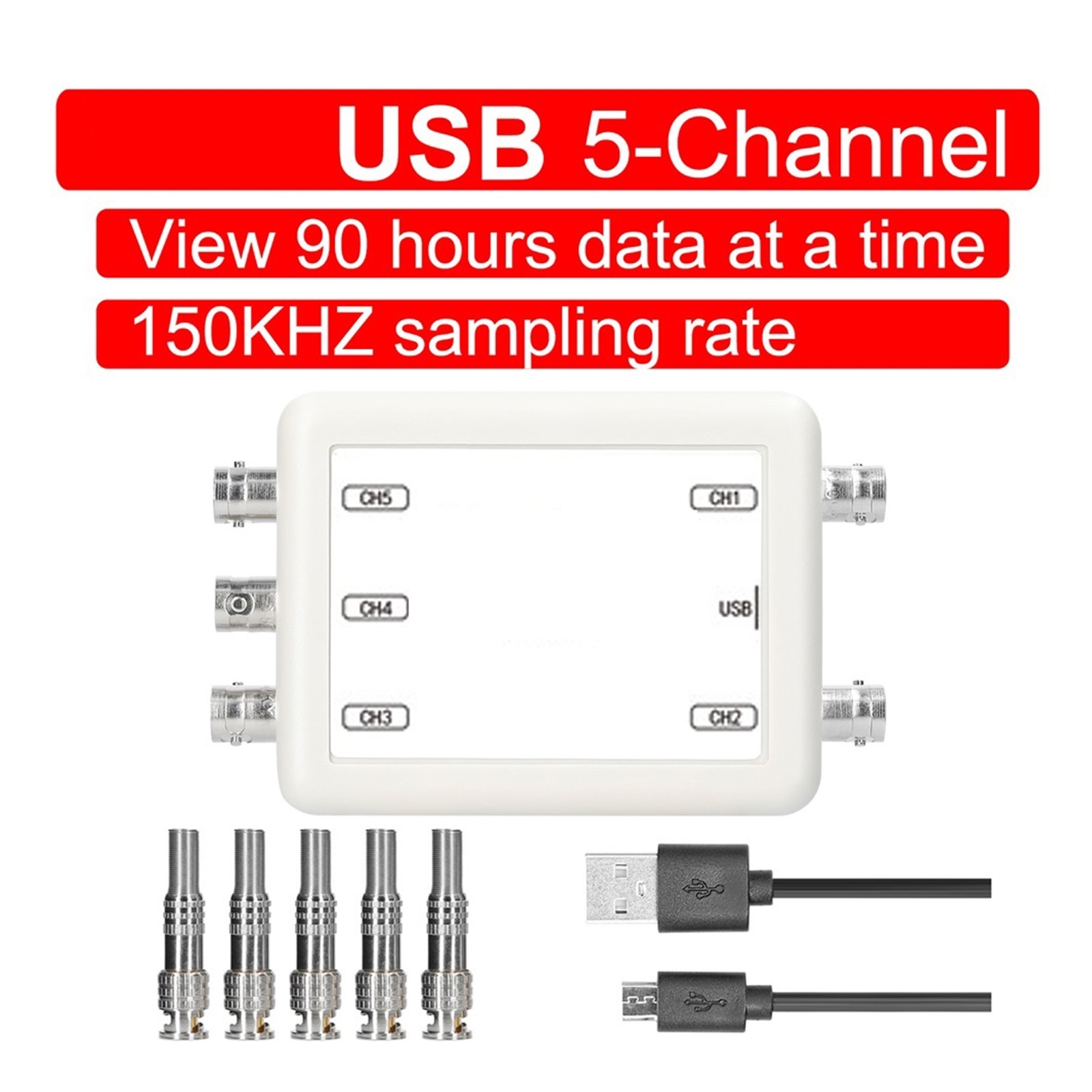

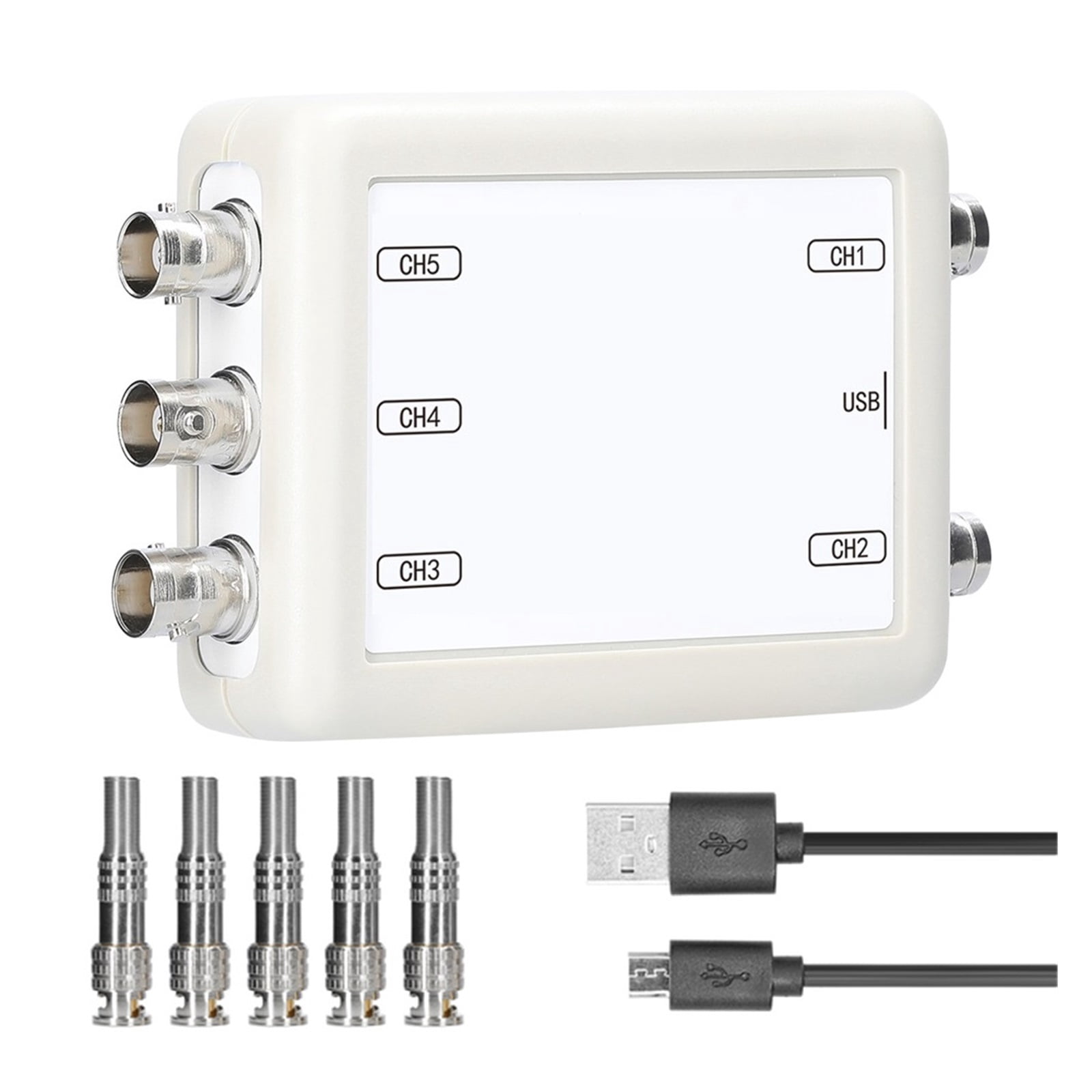

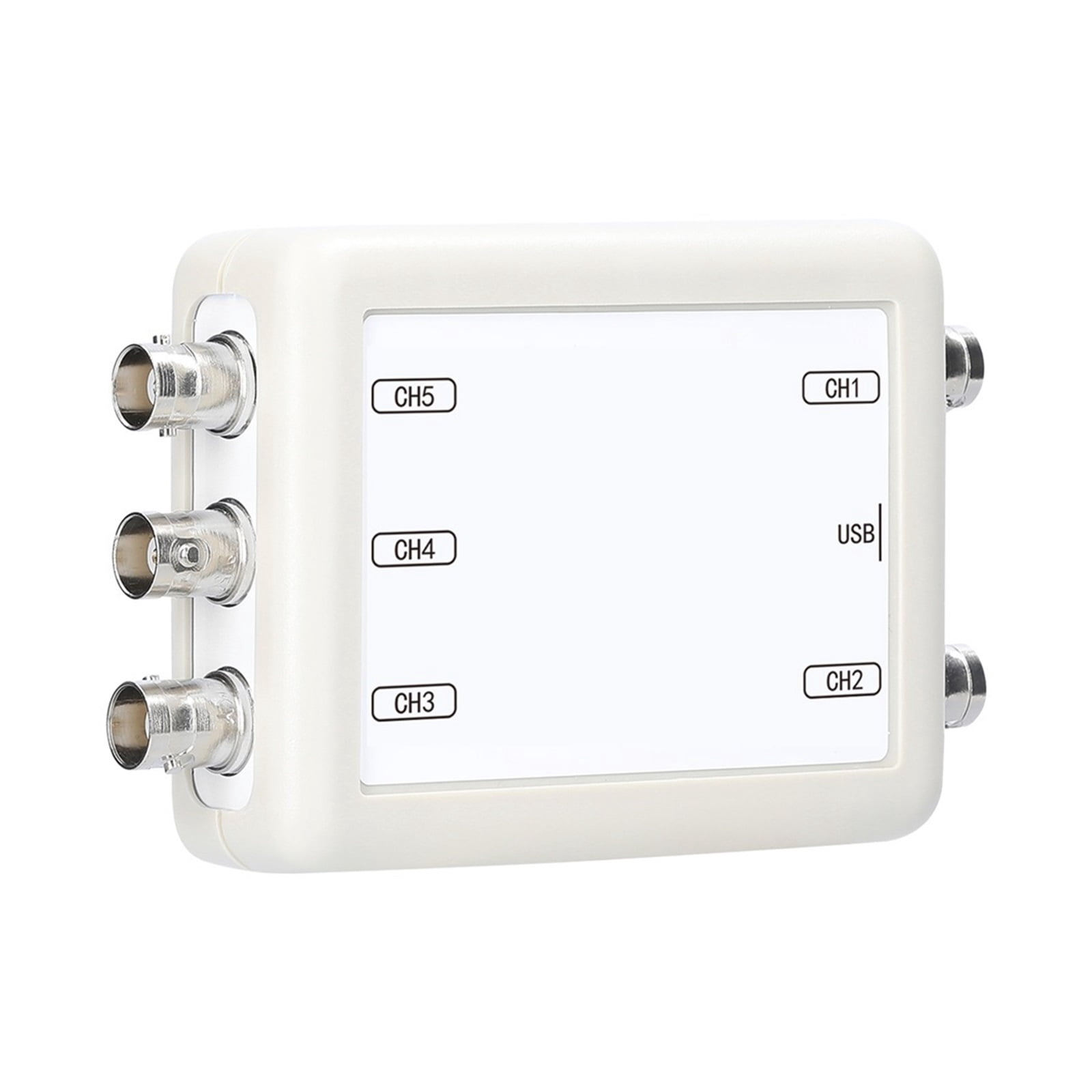

Wireless 5 Channel USB Oscilloscope Data Storage Acquisition Recorder Automotive Maintenance Utility Tool ,Professional Designed

<p>Features:</p><p>The capture (trigger) signal level can be adjusted.</p><p>Data can be saved to PC, and the saved data can be automatically transferred when the software is started.</p><p>Data can be backed up to view the backup waveform at any time.</p><p>Support display the differential signal of any two channels.</p><p>After locking the signal, the waveform can be expanded and compressed to view, up to 93 hours.</p><p>Suitable for long-term monitoring and archiving of the operating conditions of electrical equipment.</p><p>Suitable for long-term collecting and archiving data such as temperature, humidity, light, etc.</p><p></p><p>Specifications:</p><p>Name: Oscilloscope </p><p>Material: plastics</p><p>Wireless communication: Wi-Fi 2.4G</p><p>Signal input interface type: BNC interface, connected to a universal oscilloscope probe cable</p><p>Maximum sampling rate: 150kHz</p><p>Operating voltage: 5V USB interface power supplys</p><p>Current consumption: &lt;170 mA</p><p>Measurable frequency ranges: 0Hz-50 kHz</p><p>Amplitude adjustment ranges: 10 mV/DIV to 1 V/DIV</p><p>Input impedance: 1 M(&lt;0.5V/DIV) ; 330 k(0.5V/DIV)</p><p>Amplitude error:±2.5%</p><p>Time domain ranges: 100 uS/DIV-10800 S/DIV</p><p>Data recording and saving depth: 8388608 * 5</p><p>Maximum record and save data time: 93 hours</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• 5-channel input design, and synchronous display.
• Automatic amplitude measurement, 4 kinds of measurement mode can be selected by yourself.
• With input capture (trigger) function.
• Each channel can be set as a capture (trigger) signal source.
• Can set the rising edges or falling edges capture (trigger) signal.
