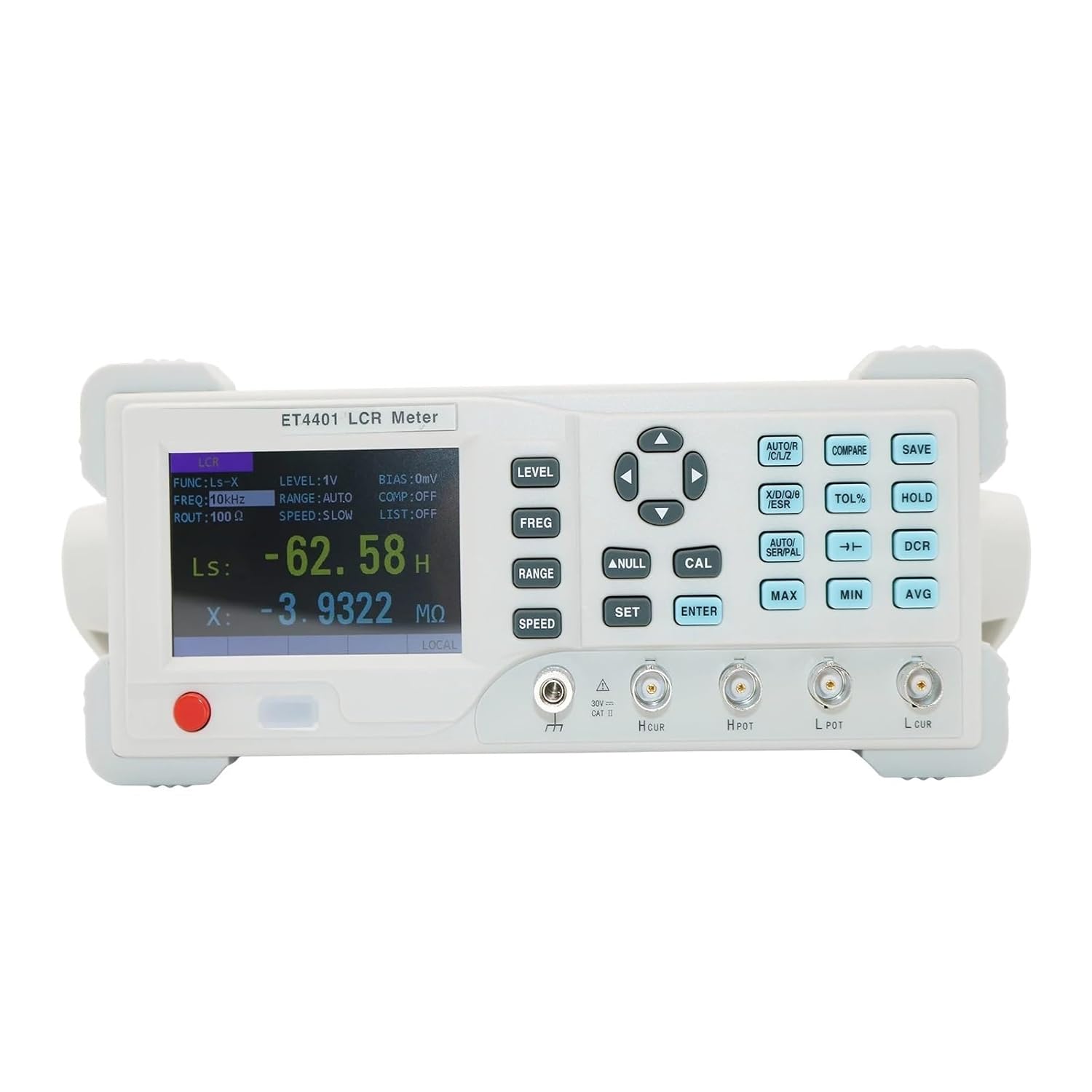

Capacitance Meter, 10Hz-100KHz Desktop Digital LCR Meter Capacitance Resistance Impedance Capacitance Inductance Measure Instrument(ET4401)

Product features:Measuring frequency up to 100 KHZ, Test level 10 - 2000 mv, Support dc resistance (DCR), electrolytic capacitor measurementThe internal bias output 0 mv - 1500 mv3.5 inch TFT display, five showsBasic measurement accuracy of 0.1%Manual and automatic ranWith open circuit and short circuit calibration functionComparator separation (5), alarm functionMain technical indicators:ModelET4401ET4402ET4410Testing frequency10 Points(100,120,200,400,800,1K,2K,4K,8K,10K)12 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K)16 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K,40K,50K,80K,100K)Display screen3.5" TFT LCD screenNumber of display digitsPrincipal parameter: 5 digitSecondary parameter: 5 digitMeasured parameter:Principal parameter: L/C/R/ZSecondary parameter: X/D/Q//ESRMeasurement ranL:0.001µH-9999H,C:0.001pF-99.999mF,R:0.0001-99.99MBasic accuracy0.1%

• Accurate Measurement: Capable of high-precision readings for inductance, capacitance, and resistance
• Multi-Frequency Capability: Operates at different frequencies for comprehensive analysis
• User-Friendly Interface: Clear digital display simplifies result interpretation
• Enhanced Measurement Accuracy: Provides results with multiple significant digits for reliability
• Calibration Support: Includes built-in features for regular calibration to maintain accuracy
