AC220V/240V 100Amp Automatic/Manual Transfer Switch 2P 50/60Hz, 2Poles Mini ATS Auto Dual Power Switch Automatic Changeover Fast Transfer for Home Generator, Soalr, Rv and Lv Power
4.1 (112 items)
Limited Time SaleUS$18.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220448789 | Release Date | 2026/05/03 | List Price | US$12.40 | Model Number | 220448789 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Fully Automatic Power Switching]: The 100A 2P dual-circuit automatic transfer switch is a PC-grade low-frequency switch primarily designed for automatic or manual switching between two power sources, while monitoring the operational status of both primary and backup power supplies. Upon detecting an anomaly in primary power source A, it rapidly switches to backup power source B within 0.05 seconds, ensuring uninterrupted, reliable, and secure power supply continuity. Upon restoration of the primary power source, the switch automatically reverts from the backup to the primary supply
- [Auto Mode]: When the AC 220V automatic transfer switch operates in auto mode, the left switch must be set to the “Auto” position, and the right red handle should point to Power Source A. When normal power source A is operating stably, the A (red light) remains illuminated. When an abnormality occurs with normal power source A, the A (green light) turns off and switches to automatic backup power source B within 0.05 seconds, at which point the B (green light) illuminates. Upon restoration of normal power source A, the system will automatically switch back from backup power source B to normal power source A.
- [Manual Mode]: When manual operation of the automatic transfer switch is required, ensure the left switch is in the manual position. To select Power Source A, manually operate the right red switch handle to point toward Power Source A. The Power Source A indicator light (red) will illuminate. To select Power Source B, manually operate the right red switch handle to point toward Power Source B. The Power Source B indicator light (red) will illuminate.
- [Flame Retardant] The housing is constructed from high-strength, flame-retardant engineering ABS plastic, while the internal conductive components are made of solid pure copper. This ensures low resistance and high electrical conductivity, preventing overheating and aging during prolonged use. The switch withstands frequent switching operations and operates reliably in diverse environments.

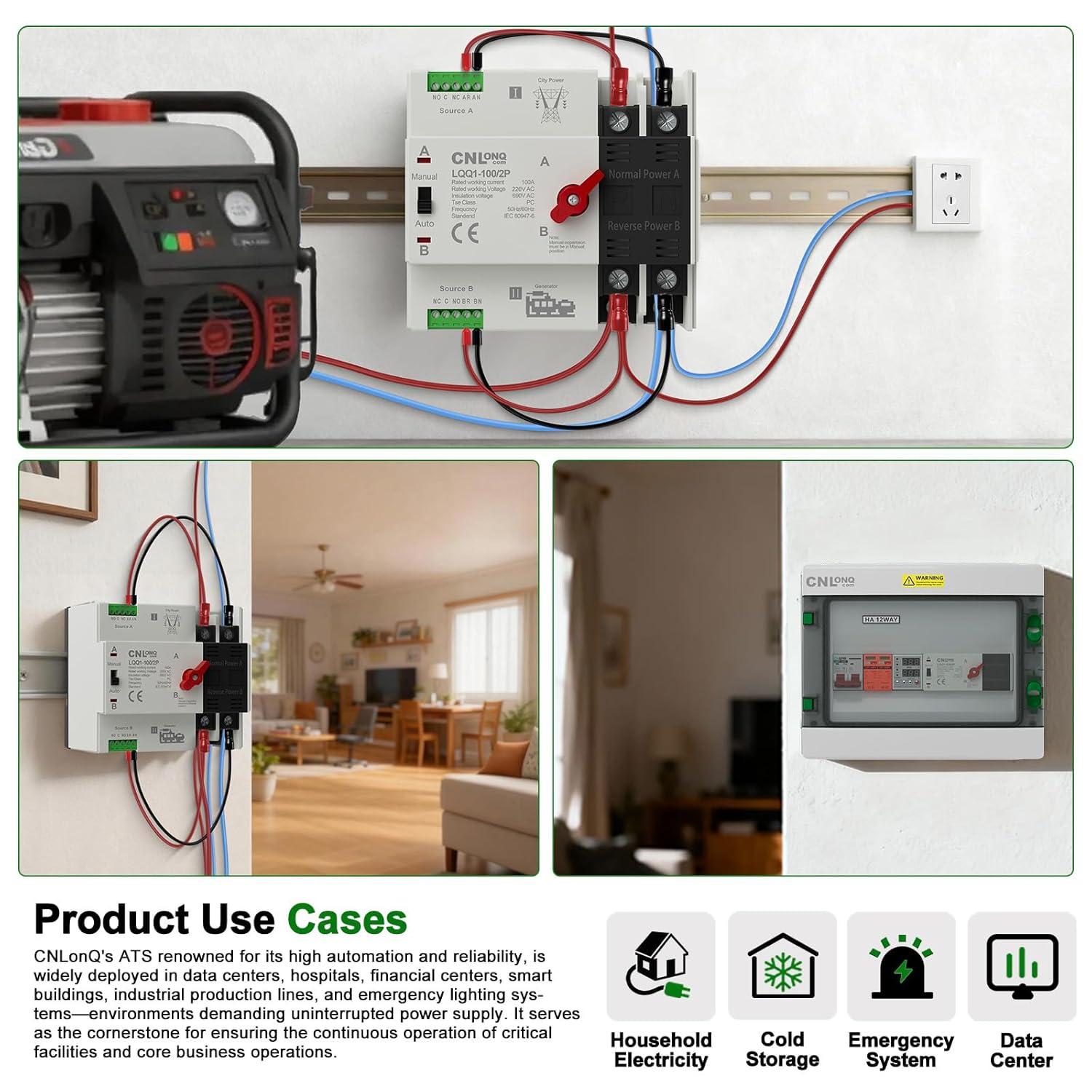

- [Wide Application]: This dual-power automatic transfer switch (ATS) ensures stable power supply for applications that cannot tolerate power outages, making it particularly suitable for high-demand equipment. Whether during late nights, severe weather, or when you're away from home, it keeps critical loads like refrigerators, water pumps, lighting, and medical devices running continuously. It automatically and rapidly switches to backup power when the main supply fails, guaranteeing safe and reliable electricity. Suitable for indoor and outdoor generator sets
| Model | 2P 100A 220V |
|---|---|
| Terminal | Screw |
| Brand Name | CNLonQcom |
| Unit Count | 1.0 Count |
| Part Number | 2P 100A 220V |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | CNLonQcom |
| Material Type | Acrylonitrile Butadiene Styrene, Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 100 Amps |
| Operation Mode | ON-ON-ON |
| Item Dimensions | 4.24 x 2.99 x 3.94 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 220 Volts |
| Specification Met | Ccc, Ce, Iec |
| Included Components | 1pcs ATS 2P 100A AC220V, 4pcs accessory cable, 1pcs flathead screwdriver |
| Number of Positions | 2 |
| Lower Temperature Rating | 23 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP20 |
