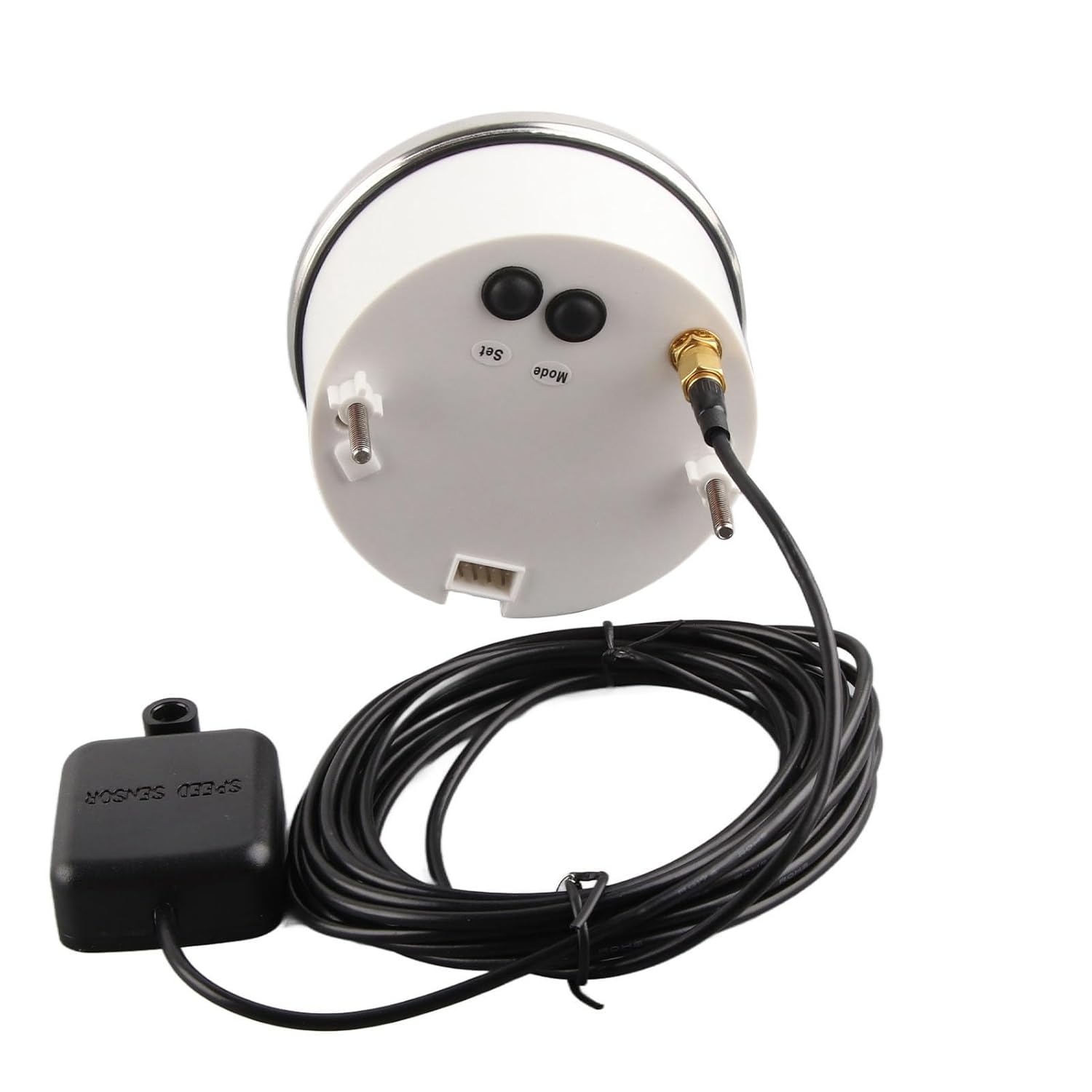

Specifications: Item Type: Digital Speedometer Material: Stainless steel 316L bezel + antifog glass COG: Chip On , which binds the driver chip directly to the glass, with the characteristics of transparency Grade: IP67, The Whole Body Is Completely ; Excellent Fog Function; Backlight Color: LED Backlight Working Voltage: -32VDC, Working Current: ≤ 150mA Working Temperature: -30 ℃- + 75 ℃ Storage Temperature: -40 ℃- + 85 ℃ Class: IP67, Can Work At 1m Underwater Applicable: Suitable For Yachts, Ships, Speedboats, Etc Instrument Description: Speedometer Display : 0-999KM/H Total Mileage Display : 0-999999KM Trip Mileage Display : 0-.9KM Voltmeter Display : 8-32V Digital : 0-360 ° Clock: 0-24H Speedometer Description: . Connect the wire with reference to the figure: Then turn on the power supply, and the meter can start to work. When the meter starts to work, it is in the search state: the speedometer will automatically count, and the flashes. The counting is -300 to search for the . The is always on to display normal, normal display speed. 2. Function selection instructions: A. Tap the Mode on the back of the meter to switch between KNOTS, MPH, and KM/H units, and save them automatically. B. After pressing and holding the Mode for 3 seconds, the ODO display area flashes and enters the total mileage parameter setting mode: then press and hold the Mode , and the ODO value increases; release the Mode and press and hold the Mode again, and the ODO value decreases ( press The longer the time, the faster the adjustment speed) C. After adjusting to the data you need,
| Brand Name | CFTGIW |
|---|---|
| Part Number | CFTGIWmgc4d8np63-12 |
| Manufacturer | CFTGIW |
| Included Components | no |
